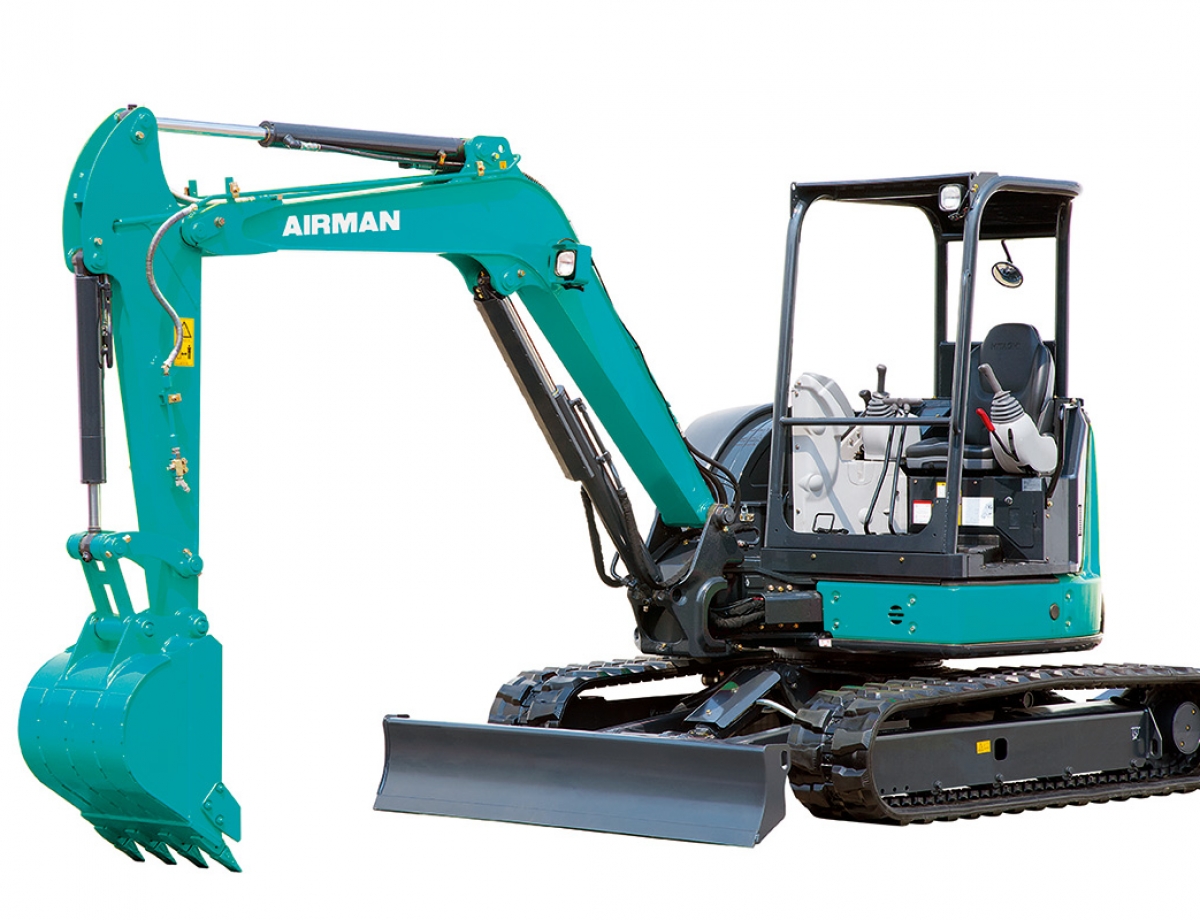

AX55U-6A
By improving operator ease of use as well as providing advanced functions and high performance for digging, loading, leveling and other work (utility), we have created a new mini excavator that is certain to satisfy customers.
Specification
| MODEL | AX55U-6A |
|---|---|
| *SPECIFICATIONS | |
| Roof Type | 4-pillar Canopy/Cab |
| Shoe Type | Rubber shoe/Steel Shoe |
| *WEIGHT & CAPACITIES | |
| Machine weight (kg) | 4780/4780 |
| Budget capacity [m3] | 0.16 |
| Bucket width with side cutters(mm) | 650 |
| *ENGINE | |
| Make/Model | YANMAR EDM-4TNV88 |
| Type | 4-cycle water-cooled, direct injection |
| Rated output/Rotating speed (kw/min-1[ps/rpm]) | |
| Fuel tank capacity(l) | 70 |
| *WORKING RANGE | |
| Max. digging reach (mm) | 5960 |
| Max. digging reach at ground (mm) | 5820 |
| Max. digging depth (mm) | 3530 |
| Max. cutting height (mm) | 5750 |
| Min.swing radius (mm) | 2210(1730) |
| Rear edge swing radius (mm) | 1100 |
| *DIMENSION | |
| Max. transport length × under carriage width ×overall height(mm) | 5470×2000×2530 |
| Designated emission regulation | JPN Stage 3 |
|
|
